E14/L150
Safety Valve Features
High pressure piped discharge safety valve of the E14/L150 family, made of brass, stainless steel or mixed version, available with 1”, 1"1/4 or 1”1/2 connections. Designed for gas, liquid or steam.
Suitable for:
- CO2
- Air conditioning and refrigeration
- Cryogenics
- Cogeneration
- Hydrogen
- Oil & gas
- Pharmaceutical and chemical industries
- Industrial sector
- Gas production and distribution

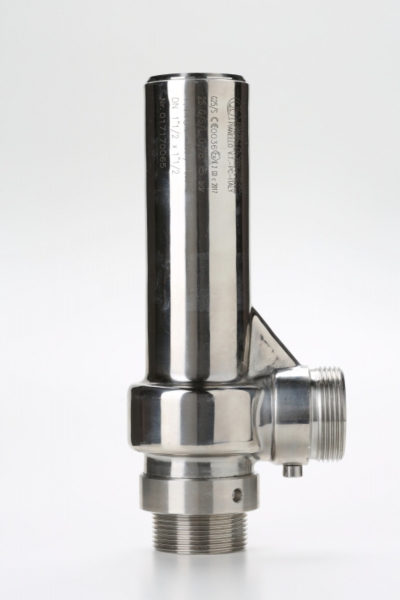

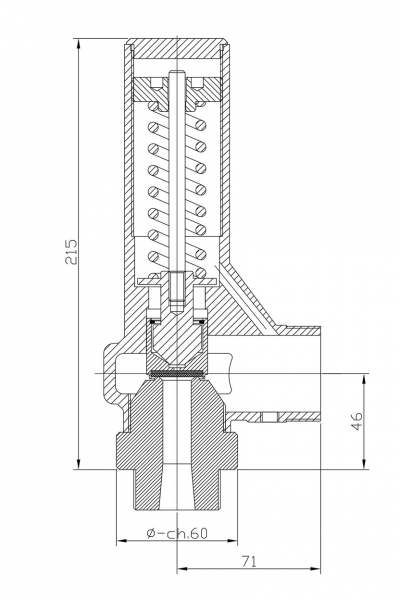

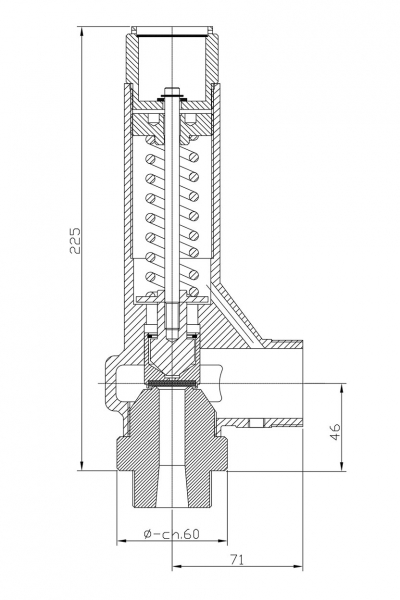

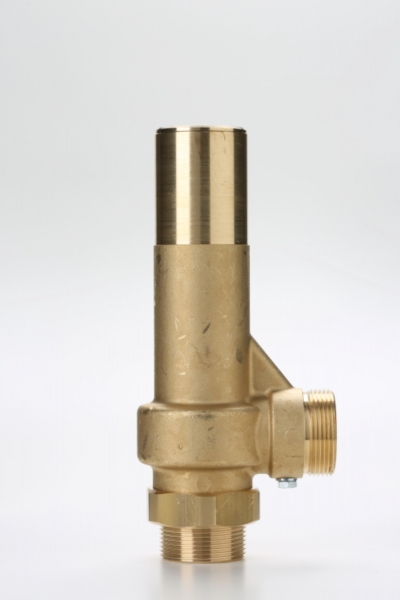

Available versions: test ring nut (E14/L150) or closed without test device (E14/LS150).
| Tipo : Type : |
E14/L150 | do: 14mm | Area: 153,86mm2 |
|---|---|---|---|
| Omologazione Homologation |
PN | Coefficiente efflusso ridotto Reduced flow coefficient |
Campo di taratura Setting range |
| CE - UKCA | 150 | 0,86 | 100,0 - 150,0 bar |
| EAC | 150 | 0,86 | 100,0 - 150,0 bar |
| ATEX Ex h II 2 Gb - UKEX | 150 | 0,86 | 100,0 - 150,0 bar |
| ATEX Ex h II 2 Db - UKEX | 150 | 0,86 | 100,0 - 150,0 bar |
| ASME XIII - CRN (Canada) | 150 | 0,629 | 100,0 - 150,0 bar |
| SELO - TSG | 150 | 0,629 | 100,0 - 150,0 bar |
| CONFIGURAZIONE - CONFIGURATION | |||
| Materiale Material |

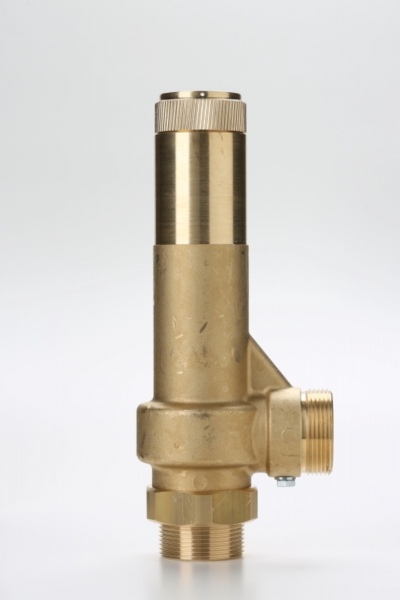

Ottone Brass |
Mista Ottone-Acciaio inox Mixed Brass-Stainless steel |

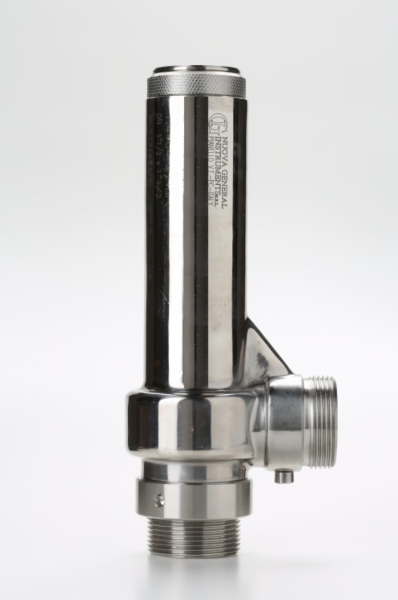

Acciaio inox Stainless steel |
| Modelli Model |
Con ghiera | Con ghiera | Con ghiera |
| With ring nut | With ring nut | With ring nut | |
| Senza Ghiera | Senza Ghiera | Senza Ghiera | |
| Without ring nut | Without ring nut | Without ring nut | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Sedi di Tenuta Seal System |
PTFE -196 / + 250 °C | PTFE -196 / + 250 °C | PTFE -196 / + 250 °C |
| PEEK -196 / + 200 °C | PEEK -196 / + 200 °C | PEEK -196 / + 200 °C | |
| / | METAL -196 / +250 °C | METAL -196 / +450 °C | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Entrata Inlet Connection |
G.1" - 1"1/4 - 1"1/2 ISO228 | G.1" - 1"1/4 - 1"1/2 ISO228 | G.1" - 1"1/4 - 1"1/2 ISO228 |
| R.1" - 1"1/4 - 1"1/2 | R.1" - 1"1/4 - 1" 1/2 | R.1" - 1"1/4 - 1" 1/2 | |
| 1" - 1"1/4 - 1"1/2 NPT | 1" - 1"1/4 - 1" 1/2 NPT | 1" - 1"1/4 - 1" 1/2 NPT | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Uscita Outlet Connection |
G.1"1/2 ISO228 | G.1"1/2 ISO228 | G.1"1/2 ISO228 |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloy On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: | |||
