G10
Safety Valve Features

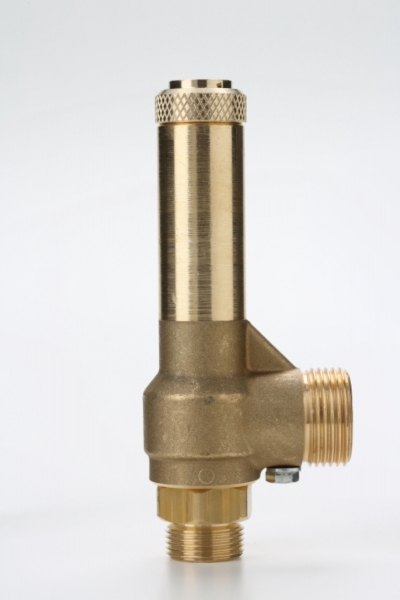

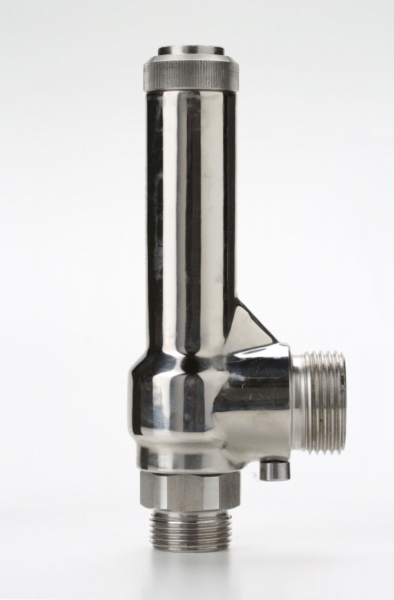

Piped discharge safety valve of the G10 family, made of brass, stainless steel or mixed version, available with 1/2”, 3/4” or 1” connections. Designed for gas, liquid or steam.
Suitable for:
- Oil & gas
- Pharmaceutical and chemical industries
- Sterilization autoclaves
- Boilers and steam generators
- Water treatment
- Industrial sector
- Gas production and distribution
- Food industry
- Bottling
- Hydrogen
- Cogeneration
- Air conditioning and refrigeration
- Cryogenics

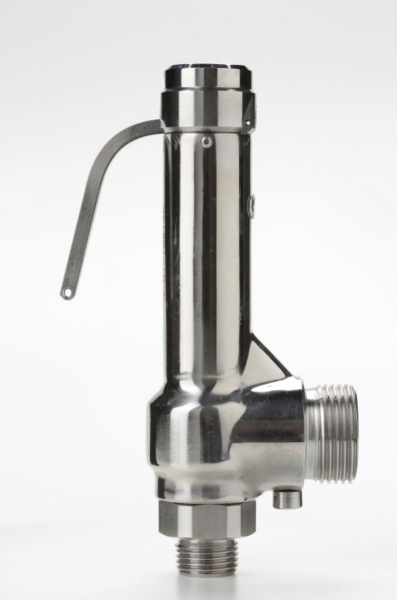

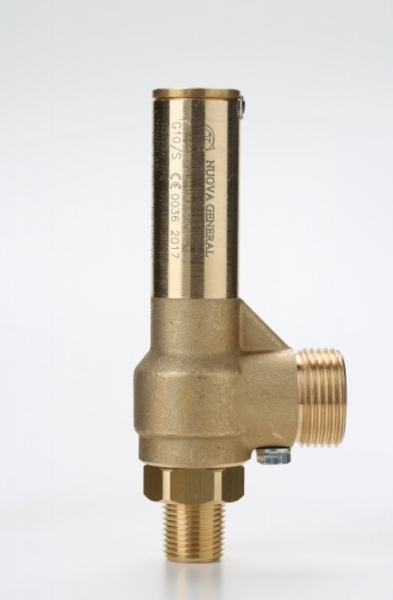

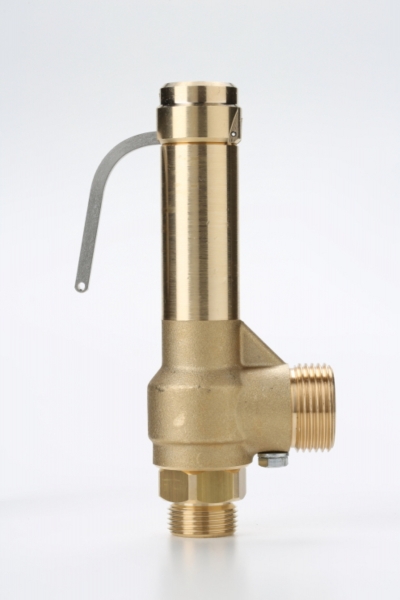

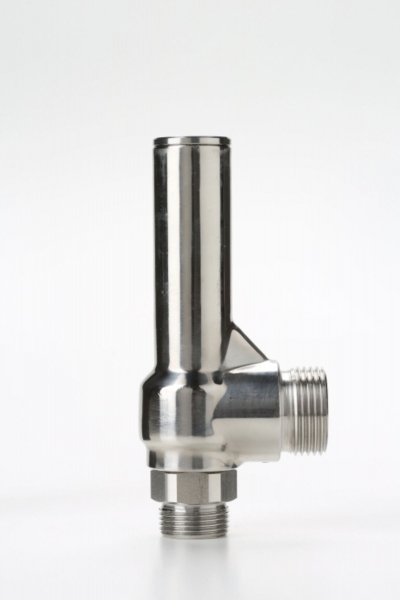

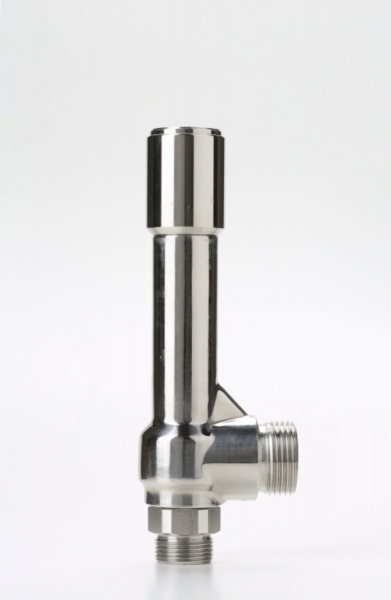

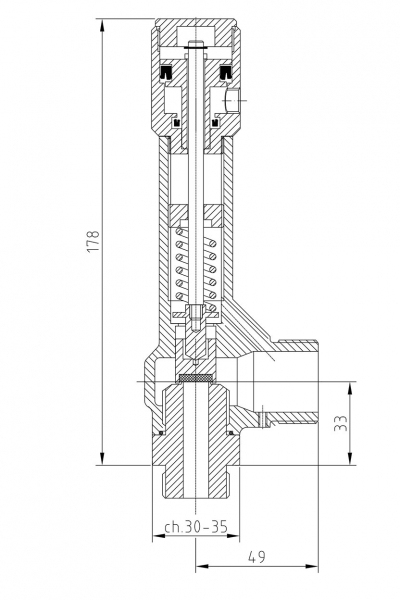

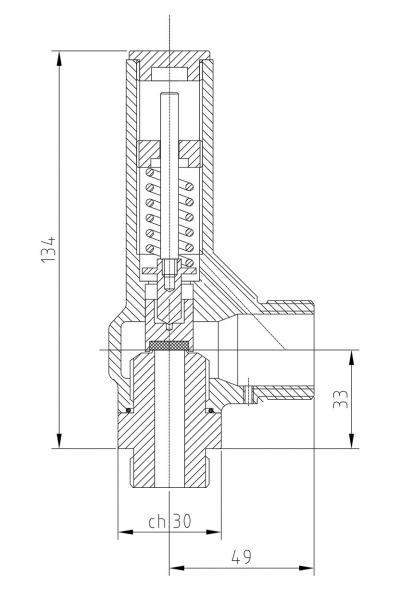

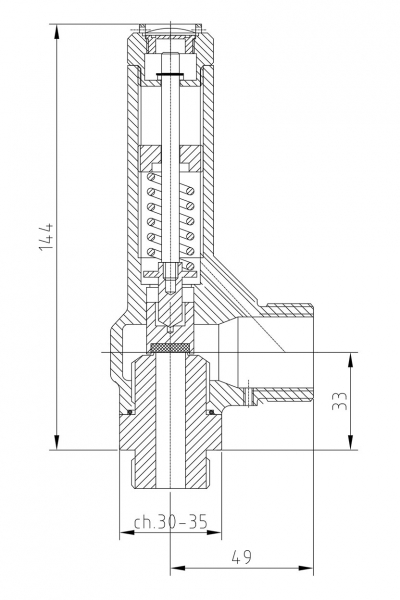

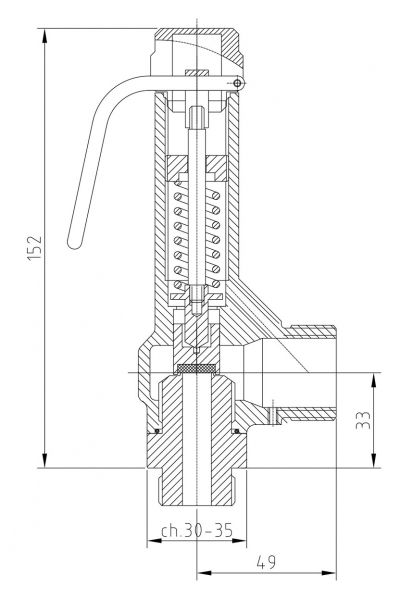

Available versions: test ring nut (G10), test lever (G10/L), pneumatic test actuator (G10/P) or closed without test device (G10/S).
| Tipo : Type : |
G10 | do: 10mm | Area: 78,50mm2 |
|---|---|---|---|
| Omologazione Homologation |
PN | Coefficiente efflusso ridotto Reduced flow coefficient |
Campo di taratura Setting range |
| CE - UKCA | 40 | 0,85 | 0,3 - 30,0 bar |
| EAC | 40 | 0,85 | 0,3 - 30,0 bar |
| ATEX Ex h II 2 Gb - UKEX | 40 | 0,85 | 0,3 - 30,0 bar |
| ATEX Ex h II 2 Db - UKEX (1) | 40 | 0,85 | 0,3 - 30,0 bar |
| ASME XIII - CRN (Canada) | 40 | 0,629 | 1,0 - 40,0 bar |
| SELO - TSG | 40 | 0,629 | 1,0 - 40,0 bar |
| CONFIGURAZIONE - CONFIGURATION | |||
| Materiale Material |
Ottone Brass |
Mista Ottone-Acciaio inox Mixed Brass-Stainless steel |
Acciaio inox Stainless steel |
| Modelli Model |
Con ghiera | Con ghiera | Con ghiera |
| With ring nut | With ring nut | With ring nut | |
| Senza Ghiera | Senza Ghiera | Senza Ghiera | |
| Without ring nut | Without ring nut | Without ring nut | |
| Con leva | Con leva | Con leva | |
| With lever | With lever | With lever | |
| / | / | Con apertura pneumatica | |
| / | / | With pneumatic opening | |
| / | / | Pneumatica con sensore | |
| / | / | Pneumatic with sensor | |
| Sedi di Tenuta Seal System |
N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C |
| E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | |
| VITON -20 / +200 °C | VITON -20 / +200 °C | VITON -20 / +200 °C | |
| SILICONE -60 / +200 °C | SILICONE -60 / +200 °C | SILICONE -60 / +200 °C | |
| PTFE -196 / +250 °C | PTFE -196 / +250 °C | PTFE -196 / +250 °C | |
| KALREZ -20 / +250 °C | KALREZ -20 / +250 °C | KALREZ -20 / +275 °C | |
| / | Metal -196 / +250 °C | Metal -196 / +450 °C | |
| Connessione Entrata Inlet Connection |
G.3/8"-1/2"-3/4"-1"ISO228 | G.3/8"-1/2"-3/4"-1"ISO228 | G.3/8"-1/2"-3/4"-1"ISO228 |
| R3/8"-1/2"-3/4"-1"EN10226 | R3/8"-1/2"-3/4"-1"EN10226 | R3/8"-1/2"-3/4"-1"EN10226 | |
| 3/8" - 1/2" - 3/4" - 1" NPT | 3/8" - 1/2" - 3/4" - 1" NPT | 3/8" - 1/2" - 3/4" - 1" NPT | |
| / | 1" - 1"1/2 Tri Clamp | 1" - 1"1/2 Tri Clamp | |
| / | DN25 DIN405-11851 | DN25 DIN405-11851 | |
| / | DN15-20-25 PN16-40 | DN15-20-25 PN16-40 | |
| / | 1/2" - 3/4" - 1" 150-300 lb | 1/2" - 3/4" - 1" 150-300 lb | |
| Connessione Uscita Outlet Connection |
G.1" ISO228 | G.1" ISO228 | G.1" ISO228 |
| / | 1" - 1"1/2 Tri Clamp | 1" - 1"1/2 Tri Clamp | |
| / | DN25 DIN405-11851 | DN25 DIN405-11851 | |
| / | DN20-25 PN16-40 | DN20-25 PN16-40 | |
| / | 1" 150-300 lb | 1" 150-300 lb | |
| / | / | / | |
| / | / | / | |
| A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: (1) No Modello Con leva / No Model With lever | |||
