PVC10
Safety Valve Features
Piped discharge safety valve of the PVC10 family, made of PVC, available with 1/2” connections. Designed for gas, liquid or steam.
Suitable for:
- Pharmaceutical and chemical industries
- Water treatment
- Industrial sector
- Gas production and distribution
- Food industry
- High corrosive environment

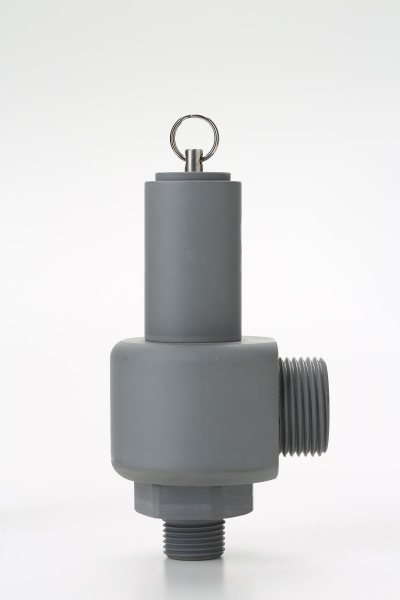

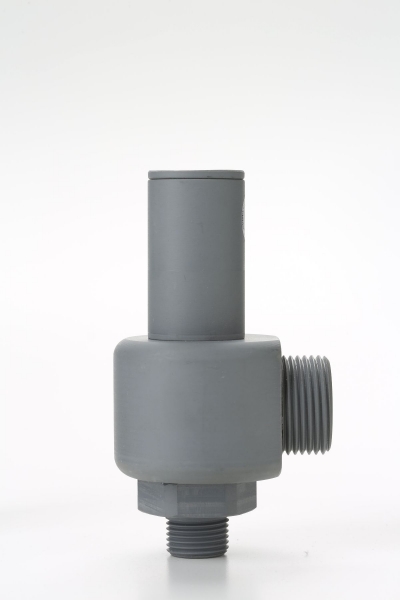

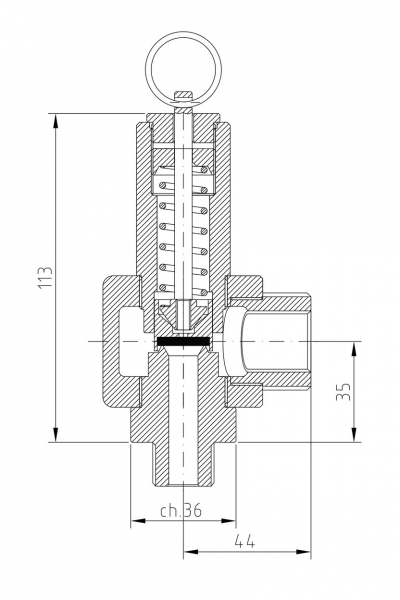

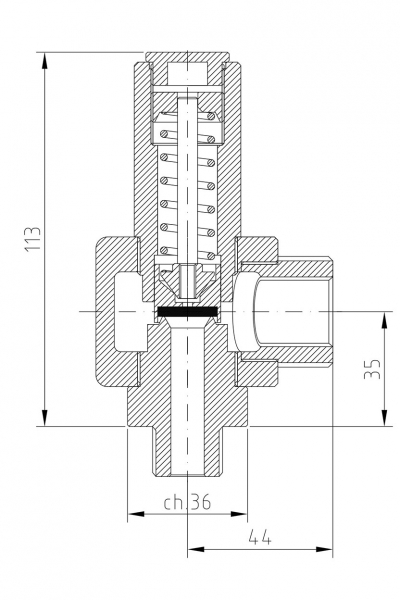

Available versions: test ring (PVC10/A) or closed without test device (PVC10/S).
| Tipo : Type : |
PVC10 | do: 10 mm | Area: 78,50mm2 |
|---|---|---|---|
| Omologazione Homologation |
PN | Coefficiente efflusso ridotto Reduced flow coefficient |
Campo di taratura Setting range |
| E.D. 2014/68/EU IV Cat.(PED) | 16 | 0,774 | 0,3 - 16,0 bar |
| EAC | / | / | / |
| ATEX Ex II 2 G c | / | / | / |
| ATEX Ex II 2 D c | / | / | / |
| ASME XIII - CRN (Canada) | / | / | / |
| SELO - TSG | / | / | / |
| CONFIGURAZIONE - CONFIGURATION | |||
| Materiale Material |
PVC PVC |
||
| Modelli Model |
Senza Ghiera | ||
| Without ring nut | |||
| Con anellino | |||
| With ring | |||
| / | |||
| / | |||
| / | |||
| / | |||
| / | |||
| / | |||
| Sedi di Tenuta Seal System |
N.B.R. (Std) -10 / + 85 °C | / | / |
| E.P.D.M. -15 / + 85 °C | / | / | |
| VITON -15 / + 85 °C | / | / | |
| SILICONE -15 / + 85 °C | / | / | |
| KALREZ -15 / + 85 °C | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Entrata Inlet Connection |
G. 1/2" ISO228 | / | / |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Uscita Outlet Connection |
G. 1" ISO228 | / | / |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd Register On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: |
|||
