High pressure safety valves

All our high pressure safety valves piped discharge type can be provided in Inox SS316L, Brass or Mixed version.

All our high pressure safety valves free discharge type can be provided in Inox SS316L or Brass.

(E5/LS600 available only in Inox SS316L)

bar

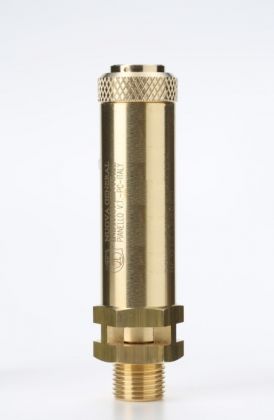

E10

Free discharge safety valve made in brass or inox 316L

0.3 - 100.0 bar

Brass, Inox

Threaded (ISO228, NPT, EN10226)
from DN15 (1/2") to DN20 (3/4")

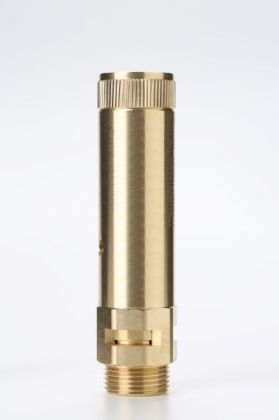

E14

Free discharge safety valve made in brass or inox 316L

0.3 - 100.0 bar

Brass, Inox

Threaded (ISO228, NPT, EN10226)
from DN20 (3/4") to DN25 (1")

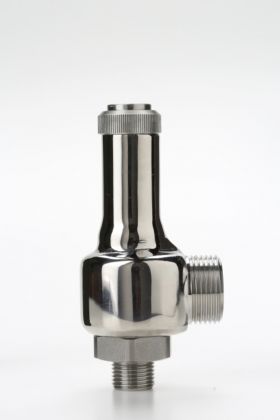

E10/L

Piped safety valve made in brass, inox 316L or mixed

0.3 - 100.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN15 (1/2") to DN20 (3/4")

Tri Clamp
from DN25 (1") to DN40 (1 1/2")

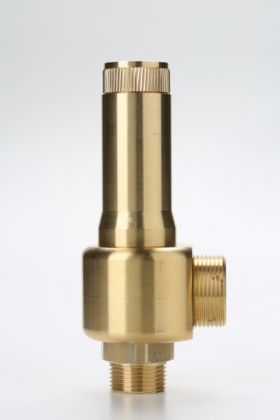

E14/L

Piped safety valve made in brass, inox 316L or mixed

0.3 - 100.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN20 (3/4") to DN25 (1")

Tri Clamp
from DN25 (1") to DN40 (1 1/2")

DIN-Sanitary
from DN25 (1") to DN32 (1 1/4")

E10/L150

Piped safety valve made in brass, inox 316L or mixed

0.3 - 150.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN15 (1/2") to DN32 (1 1/4")

Tri Clamp
from DN25 (1") to DN40 (1 1/2")

E14/L150

Piped safety valve made in brass, inox 316L or mixed

0.3 - 150.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN25 (1") to DN40 (1 1/2")

Tri Clamp
from DN25 (1") to DN50 (2")

E5/LS

Piped safety valve made in brass, inox 316L or mixed

0.3 - 300.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN15 (1/2") to DN25 (1")

E5/LS600

Piped safety valve made in inox 316L

300.1 - 600.0 bar

Inox

Threaded (ISO228, NPT, EN10226)
from DN15 (1/2") to DN25 (1")

E8/LS

Piped safety valve made in brass, inox 316L or mixed

0.3 - 200.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN15 (1/2") to DN25 (1")

E8/LS300

Piped safety valve made in brass, inox 316L or mixed

200.1 - 300.0 bar

Brass, Inox, Mixed

Threaded (ISO228, NPT, EN10226)
from DN20 (3/4") to DN25 (1")
