E14/L

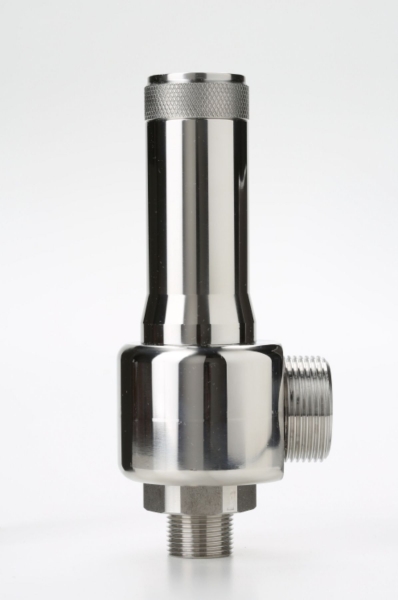

E14/L inox

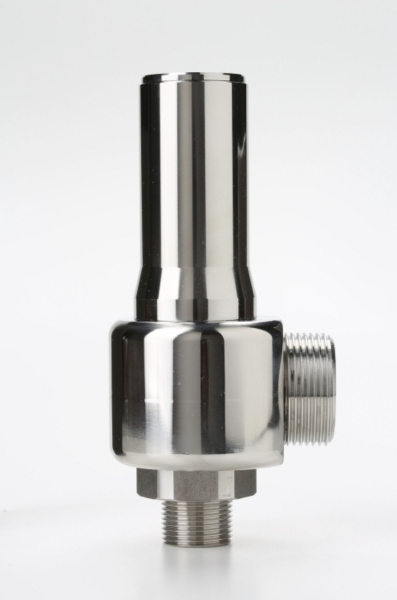

E14/LS inox

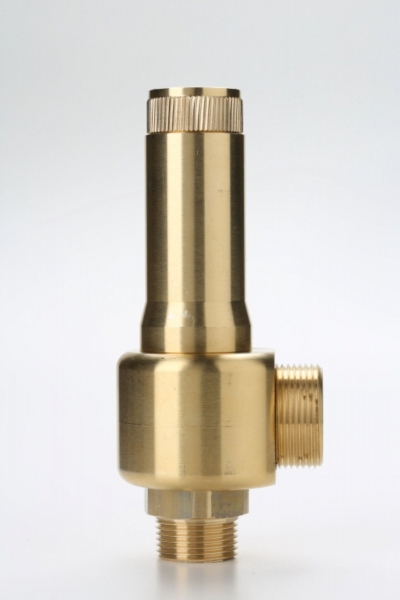

E14/L ottone

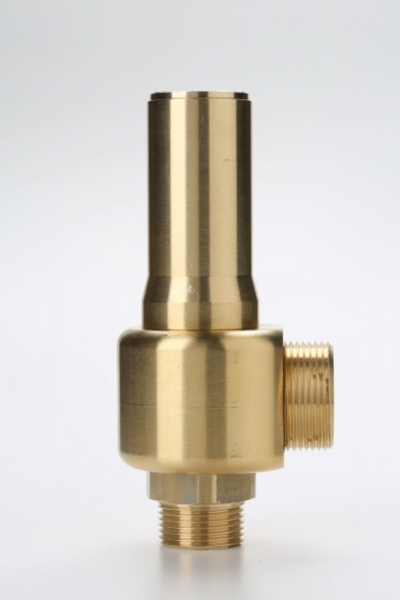

E14/LS ottone
Tipo :
Type :		 E14/L do: 14mm Area: 153,86mm2
Omologazione
Homologation		 PN Coefficiente efflusso ridotto
Reduced flow coefficient		 Campo di taratura
Setting range
CE - UKCA 100 0,86 0,3 - 100,0 bar
EAC 100 0,86 0,3 - 100,0 bar
ATEX Ex h II 2 Gb - UKEX 100 0,86 0,3 - 100,0 bar
ATEX Ex h II 2 Db - UKEX 100 0,86 0,3 - 100,0 bar
ASME XIII - CRN (Canada) 100 0,629 1,0 - 100,0 bar
SELO - TSG 100 0,629 1,0 - 100,0 bar
CONFIGURAZIONE - CONFIGURATION
Materiale
Material		 Ottone
Brass		 Mista Ottone-Acciaio inox
Mixed Brass-Stainless steel		 Acciaio inox
Stainless steel
Modelli
Model		 Con ghiera Con ghiera Con ghiera
With ring nut With ring nut With ring nut
Senza Ghiera Senza Ghiera Senza Ghiera
Without ring nut Without ring nut Without ring nut
/ / /
/ / /
/ / /
/ / /
/ / /
/ / /
Sedi di Tenuta
Seal System		 N.B.R. (Std) -10 / + 100 °C N.B.R. (Std) -10 / + 100 °C N.B.R. (Std) -10 / + 100 °C
E.P.D.M. -50 / + 150 °C E.P.D.M. -50 / + 150 °C E.P.D.M. -50 / + 150 °C
VITON -20 / +200 °C VITON -20 / +200 °C VITON -20 / +200 °C
SILICONE -60 / +200 °C SILICONE -60 / +200 °C SILICONE -60 / +200 °C
PTFE -196 / +250 °C PTFE -196 / +250 °C PTFE -196 / +250 °C
KALREZ -20 / +250 °C KALREZ -20 / +250 °C KALREZ -20 / +275 °C
/ Metal -196 / +250 °C Metal -196 / +450 °C
Connessione Entrata
Inlet Connection		 G.3/4" - 1" ISO228 G.3/4" - 1" ISO228 G.3/4" - 1" ISO228
R.3/4" - 1" EN10226 R.3/4" - 1" EN10226 R.3/4" - 1" EN10226
3/4" - 1" NPT 3/4" - 1" NPT 3/4" - 1" NPT
DN25-32 PN16-100 1" - 1"1/2 Tri Clamp 1" - 1"1/2 Tri Clamp
1" - 1"1/4 150-900 lb DN25-32 DIN405-11851 DN25-32 DIN405-11851
/ DN25-32 PN16-100 DN25-32 PN16-100
/ 1" - 1"1/4 150-900 lb 1" - 1"1/4 150-900 lb
Connessione Uscita
Outlet Connection		 G.1"1/4 ISO228 G.1"1/4 ISO228 G.1"1/4 ISO228
DN32-40PN16-100 1"1/2 Tri Clamp 1"1/2 Tri Clamp
1"1/4 - 1"1/2 150-900 lb DN32 DIN405-11851 DN32 DIN405-11851
/ DN32-40 PN16-100 DN32-40 PN16-100
/ 1"1/4 - 1"1/2 150-900 lb 1"1/4 - 1"1/2 150-900 lb
/ / /
/ / /
A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd
On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register.
Note:

Valvola di sicurezza a scarico convogliabile in ottone, inox 316L o mista

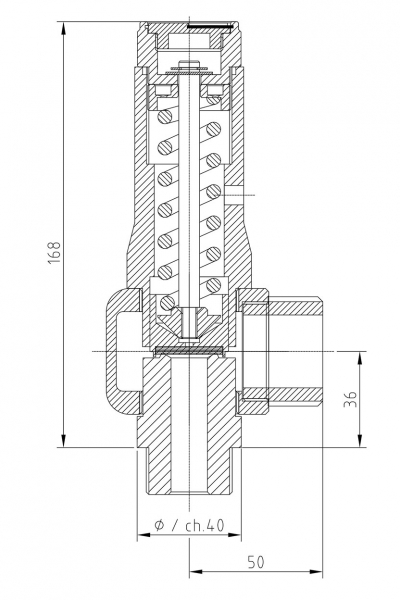

E14/L

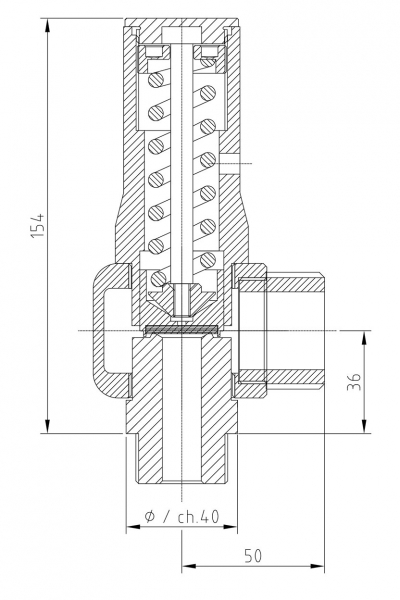

E14/LS
